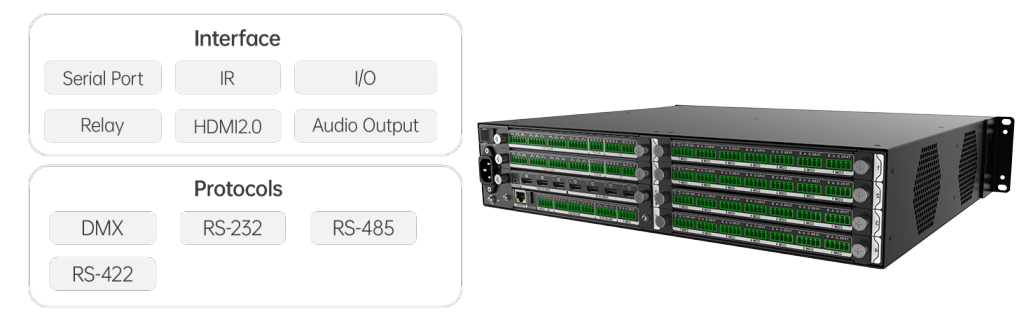

Supports interfaces including serial ports, IR, I/O, Relay, HDMI 2.0, audio output and more.
Compatible with DMX protocol for stage lighting control. Also supports a variety of protocols such as RS-232, RS-485 and RS-422.
Rich set of interfaces with high integration to meet various usage requirements.
The system features a built-in video matrix with professional image processing capabilities.
It can support uncompressed 4K×2K@60Hz ultra-high-definition image transmission, providing a detailed and clear visual experience.
Full scenario preset setting, smooth one-click switch between audio and video, simple and user-friendly.

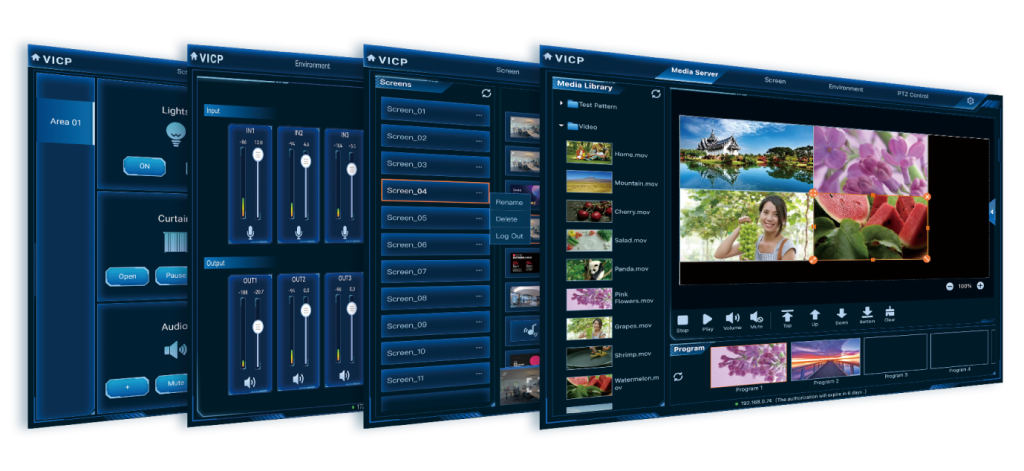

The entire series can be paired with VICP, supporting centralized visual control of LED screens, audio, media and environment.

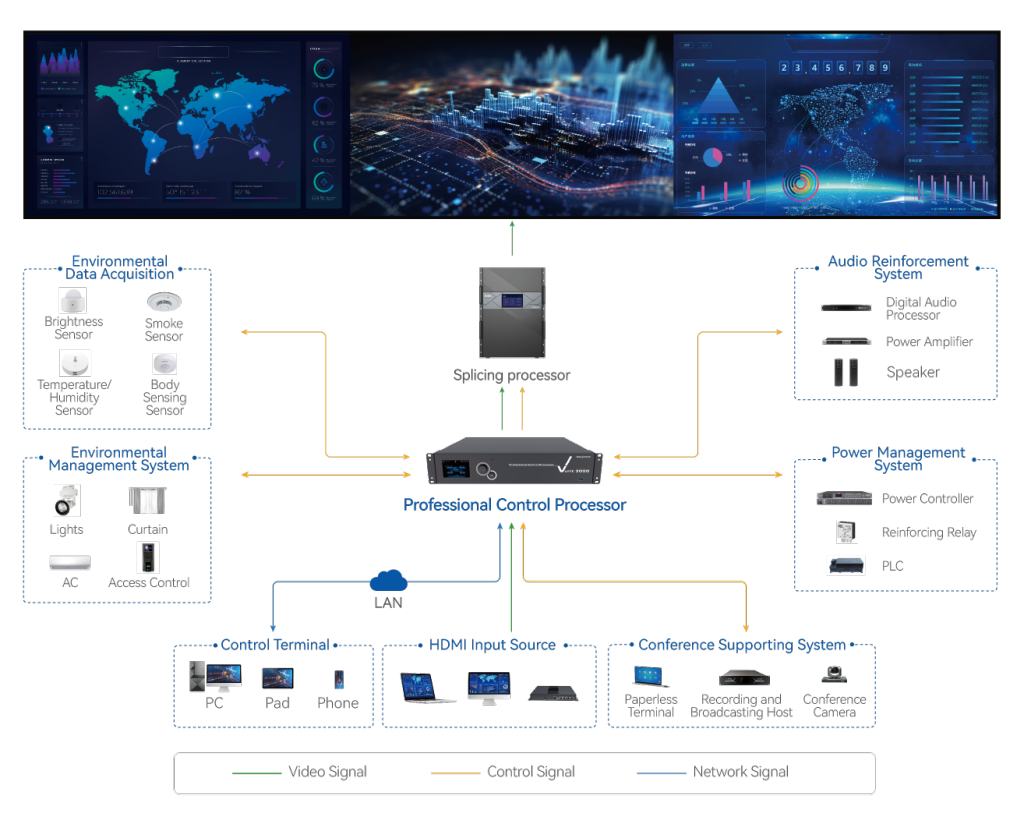

This enables intelligent control of audio, visual and lighting devices, providing a “what you see is what you get” experience.

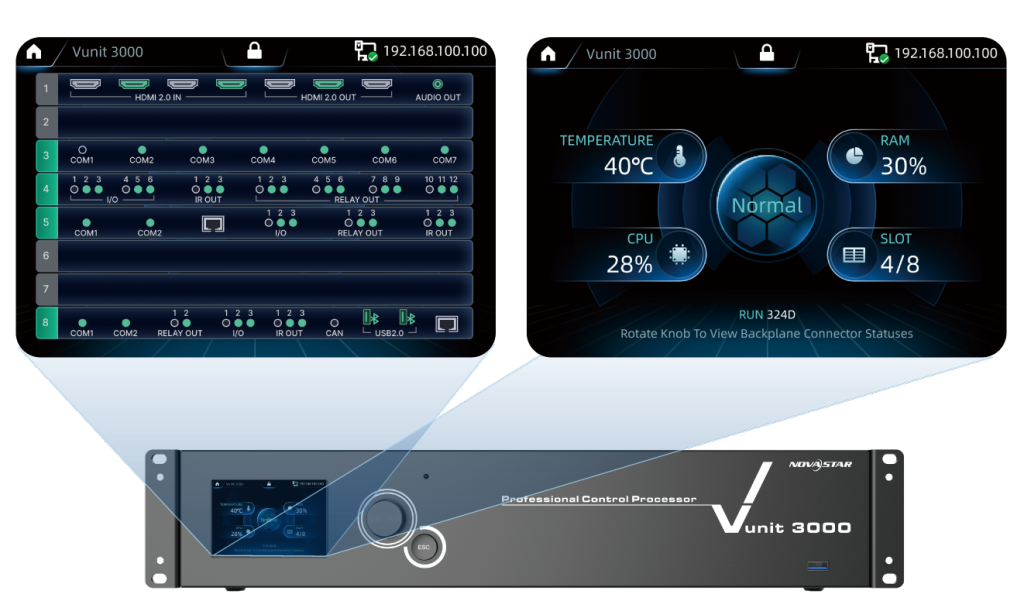

Real-time monitoring of input sources, LCD screen displaying machine status and interface information
in real-time, ensuring stable on-site operation.
Supports various control modes such as software and voice control,
meeting comprehensive usage needs and improve the user experience.

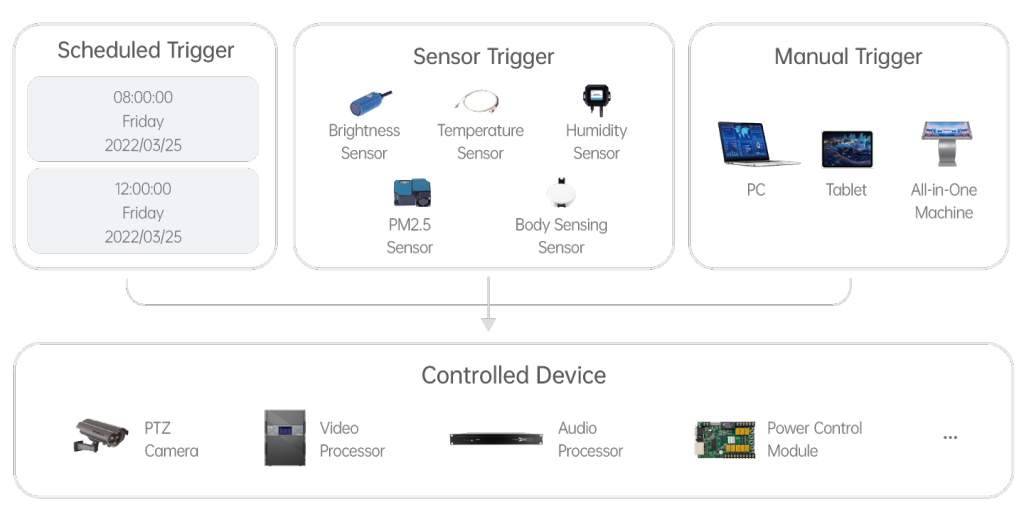

Supports scheduled timing, condition-triggered, interface-triggered,
multi-threaded time-triggered and other control functions, catering to a diverse range of scenarios.
Cards | Connectors |
VIT_ Control Card | – 1x COM – 3x RELAY OUT – 2x I/O – 9x IR OUT (I/O) – 1x CAN – 1x USB 2.0 – 1x ETHERNET |
VIT_12xRELAY + 6xI/O + 3xIR Card | – 6x I/O – 3x IR OUT – 12x RELAY |
VIT_7xCOM Card | – 7x COM – COM1 to COM6 are compatible with RS232 / RS485 protocols for input and output. – COM7 is compatible with RS422 / RS485 protocols for input and output. – All RS485 ports are compatible with DMX512 protocol for DMX512 output. – Supports three modes of the modbus protocol, including RTU, ASCII, TCP. – Programmable full-duplex communication connectors |
VIT_4xHDMI2.0 IN + 3x HDMI2.0 OUT Card | – 4x HDMI 2.0 inputs – 3x HDMI 2.0 outputs – 1x 3.5 mm audio output |
